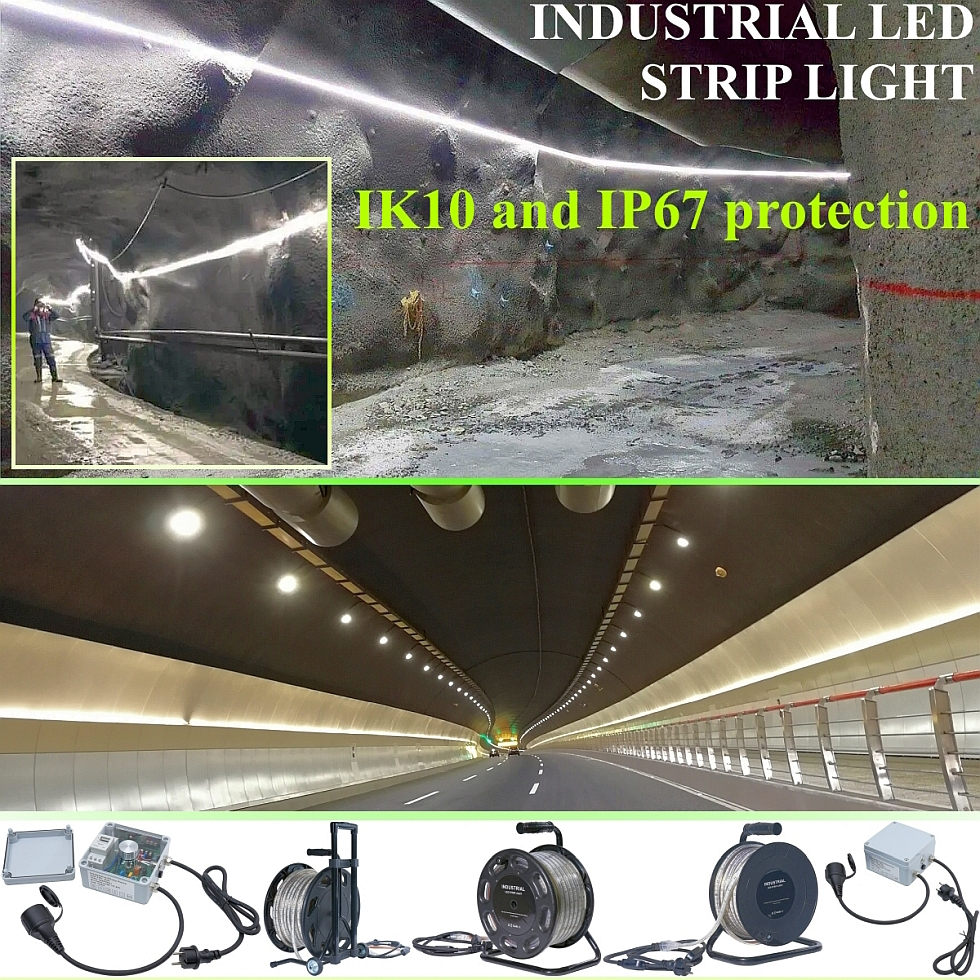

IK10 / IP67 AC Long Run LED 2-Side Strip
ELL-FW28123-TNE180X2RD-CV80-10-XXXVAC-CCT-1608-L-(N)
a. LED Type : 2835 LED ; >80Ra ; 180-LED x 2-row / m ; typical CCT : 3000K / 4000K / 5000K / 6500K. 1. FPC Size : 10mm width white PCB. 2. FPC Design : 180-LED x 2-row / m. 3. Silicone Tube : Extruded silicone tube + injected end caps. 4. Silicone Tube Body Section : 16 (width) x 8mm. 5. Length : 1-reel “L” = 3m; 15m; 25m; 50m / pce. 6. Wire / Plug : 50cm power cord with AC plug. 7. IK Rating : IK10. 8. IP Rating : IP67 (waterproof). 9. Strip Input : “XXXVAC” = 230VAC / 120VAC. 10. Power : 39w / 195w / 325w / 650w per reel. 11. Efficacy : 1300 lm/m. 12. Option with Fluorescent “N” = Self-illuminating (in darkness) upto 5-6 hours.
ELL-FW28123-TNE180X2RD-CV80-10-XXXVAC-CCT-1608-L-(N)
IK10 / IP67 AC Long Run LED 2-Side Strip
×

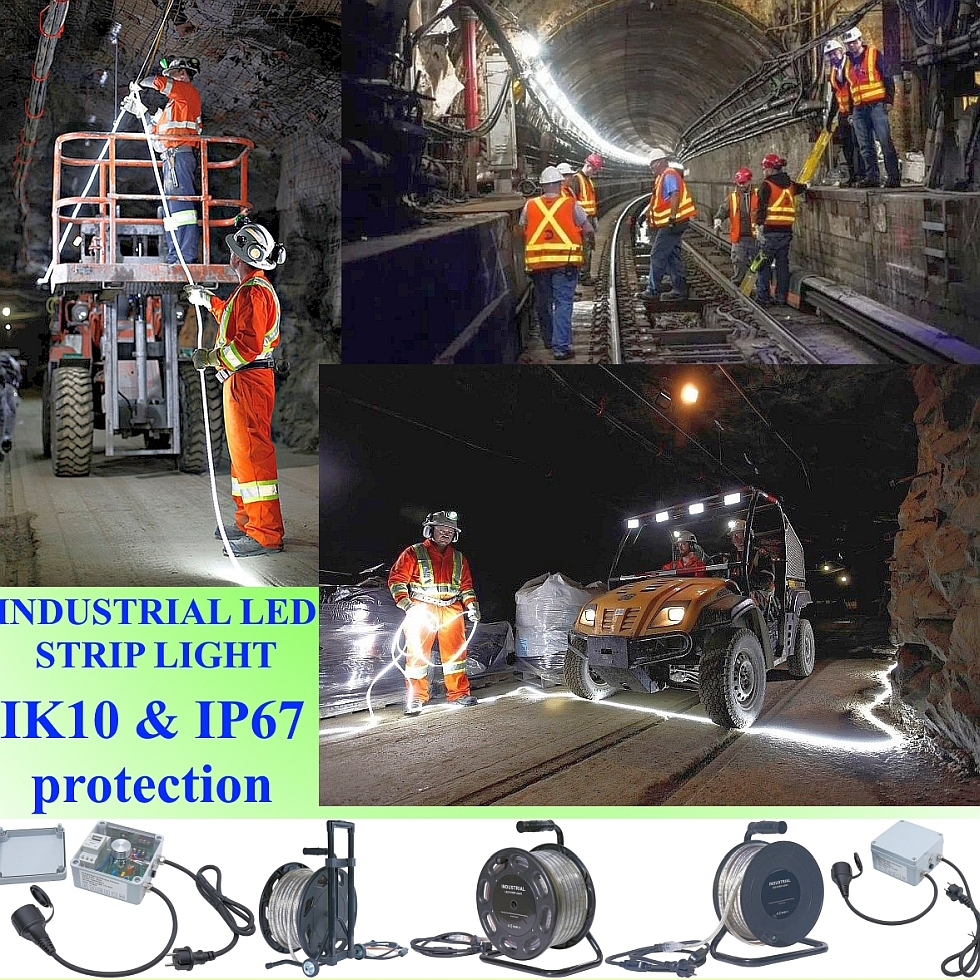

IK10 / IP67 AC Long Run LED 1-Side Strip
ELL-FW28123-TNE180R-CV80-10-XXXVAC-CCT-1608-L-(N)
a. LED Type : 2835 LED ; >80Ra ; 180-LED/m ; typical CCT : 3000K / 4000K / 5000K / 6500K. 1. FPC Size : 10mm width white PCB. 2. FPC Design : 180-LED/m. 3. Silicone Tube : Extruded silicone tube + injected end caps. 4. Silicone Tube Body Section : 16 (width) x 8mm. 5. Length : 1-reel “L” = 3m; 15m; 25m; 50m / pce. 6. Wire / Plug : 50cm power cord with AC plug. 7. IK Rating : IK10. 8. IP Rating : IP67 (waterproof). 9. Strip Input : “XXXVAC” = 230VAC / 120VAC. 10. Power : 36w / 180w / 300w / 600w per reel. 11. Efficacy : 950 lm/m. 12. Option with Fluorescent “N” = Self-illuminating (in darkness) upto 5-6 hours.
ELL-FW28123-TNE180R-CV80-10-XXXVAC-CCT-1608-L-(N)
IK10 / IP67 AC Long Run LED 1-Side Strip
